STADIP® AND STADIP® PROTECT

STADIP® – Laminated Glass

Laminated glazing provides a wide range of options to ensure your safety and that of your home. This type of safety glass can be combined with other types of glazing solutions from the Saint-Gobain Glass range to improve comfort, examples include DIAMANT®, PARSOL®, COOL-LITE®, and PLANITHERM®.

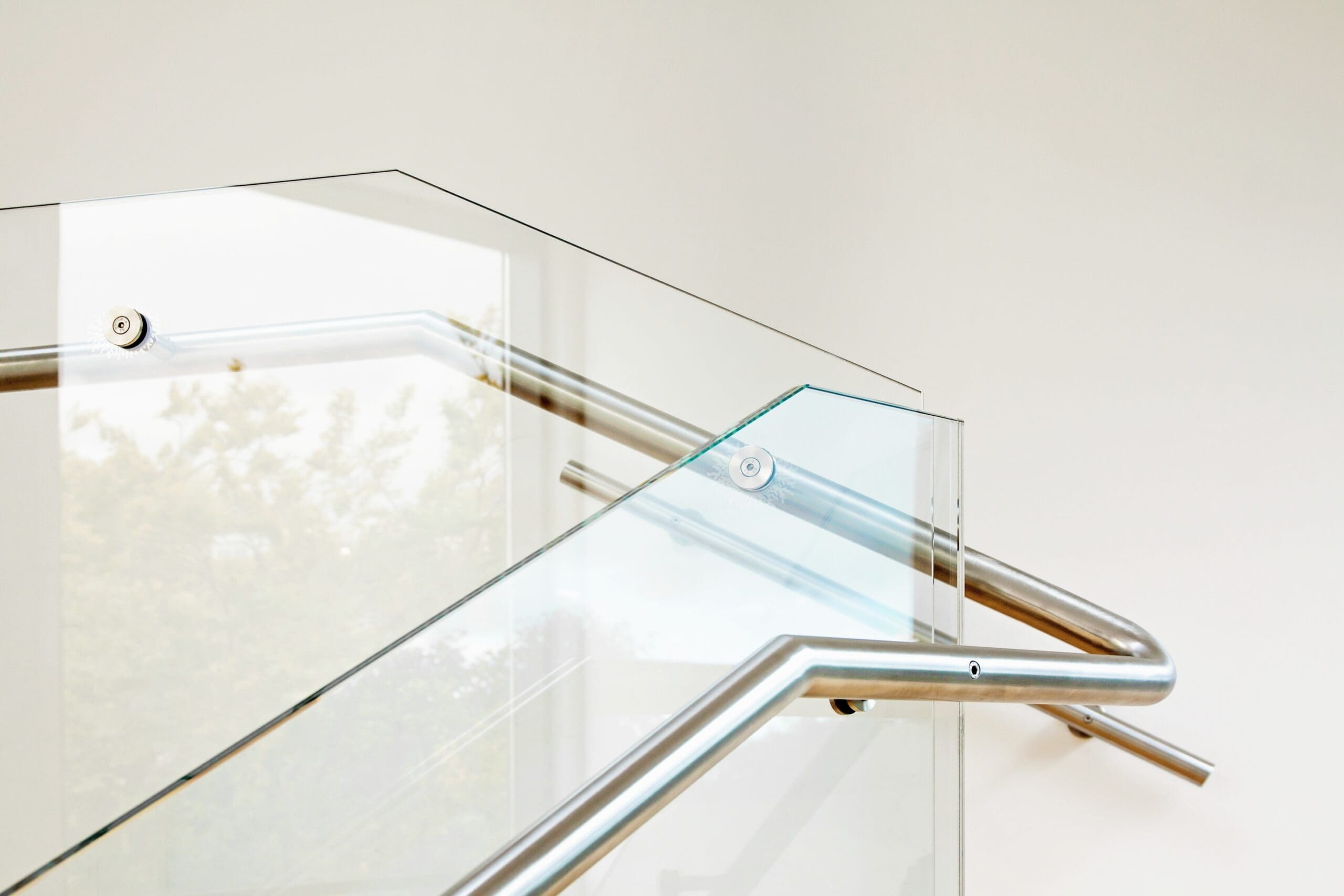

The STADIP®, STADIP® SILENCE and STADIP® PROTECT ranges are ideal for locations that need protection against injury, noise protection, guarding and balustrading, vandalism and burglary, explosions, and UV light.

acoustic

Acoustic

enhanced safety

Enhanced safety

privacy

Privacy

daylight comfort

Daylight comfort

enhanced security

Enhanced security

uv protection

UV Protection

WHEN USED IN CONJUNCTION WITH THE COOL-LITE® RANGE
energy efficient

Energy efficient

enhanced security

Enhanced security

solar control

Solar control

enhanced safety

Enhanced safety

overheating

Reduced overheating

thermal insulation

Thermal insulation

All images are for illustration purposes only

STADIP® PROTECT Advantages

PROTECTION AGAINST UV LIGHT

  • The PVB interlayer in the SGG STADIP® and SGG STADIP® PROTECT range filters most UV rays, reducing discolouration of items exposed to direct sunlight in buildings like shop window displays, curtains, carpets, and conservatories.

GLASS FLOOR PANELS

  • SGG LITE-FLOOR is a specially designed and sized laminated safety glass for use on floors.
  • Note: The polyvinyl butyral (PVB) interlayer’s behaviour varies with temperature. SGG STADIP® and SGG STADIP® PROTECT remain mechanically stable within a temperature range of 10°C to 45°C inside the glass assembly.
STADIP® & STADIP® SILENCE LAMINATED PRODUCT RANGE
Configuration of unit 1/1 Octave Band Centre Frequency Attenuation (dB)
63 Hz 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz Rw(C;Ctr)
6(16Argon)6 27 21 20 30 39 35 44 33(-1;-5)
8(16Argon)6 30 23 23 34 40 37 48 36(-2;-5)
10(16Argon)6 33 23 26 36 41 43 55 39(-2;-6)
6(16Argon)6.8SS (33.2) 30 23 25 36 46 49 56 39(-2;-6)
6(16Argon)8.8SS (44.2) 29 25 28 39 49 48 52 42(-2;-7)
6(16Argon)10.8SS (55.2) 31 25 29 40 50 46 53 42(-2;-6)
6(16Argon)10.8 (55.2) 32 27 29 38 44 44 54 41(-1;-5)
8(16Argon)10.8SS (55.2) 32 27 32 42 48 48 53 44(-2;-6)
8(16Argon)10.8 (55.2) 31 28 31 40 42 42 55 41(-1;-4)
10(16Argon)12.8SS (66.2) 29 30 33 43 45 47 57 44(-1;-4)
10(16Argon)12.8 (66.2) 24 26 32 39 38 43 56 40(-1;-4)
10(20Air)12.8SS (66.2) - 29 36 43 44 46 59 45(-1;-5)
10(24Air)14.8SS (86.2) 27 33 37 44 45 44 54 45(-1;-3)
12.8A (66.2)(16Argon)8.8SS (44.2) 31 30 35 46 54 55 63 48(-2;-6)
10.8A (64.2)(24Air)14.8SS (86.2) 28 36 42 48 52 53 60 51(-1;-4)
STADIP® is a laminated product that provides additional security, safety and UV benefits over and above annealed, heat strengthened or thermally toughened glass.
STADIP® SILENCE SS is a laminated product that provides all the benefits of STADIP® with additional high acoustic performance.
*SS denotes the use of STADIP SILENCE® acoustic laminate interlayer.
All acoustic performances are tested and certified in acoustic test reports and can be requested through Saint-Gobain Glass.

COOL-LITE® STADIP® SILENCE
Sealed Unit Configuration (8.8SS*-16-6) Visible Light Energy Factors Solar Factor U Value BS EN 356 Secure by Design BS EN 12600 Impact Safety Acoustic Rw (C;Ctr)
Outer Pane (Coating on Face 2) Inner Pane Total Light Transmission % External Reflection % Direct Transmission % External Reflection % g-value Argon (90%) W/mK
STADIP® SILENCE COOL-LITE® XTREME 70/33 PLANICLEAR® 69 11 29 31 0.31 1.0 P2A 1(B)1 42 (-2;-7)
STADIP® SILENCE COOL-LITE® SKN 176 PLANICLEAR® 69 13 33 31 0.35 1.0 P2A 1(B)1 42 (-2;-7)
STADIP® SILENCE COOL-LITE® SKN 165 PLANICLEAR® 60 16 30 31 0.32 1.0 P2A 1(B)1 42 (-2;-7)
Please note that all the of the above configurations should be subject to a thermal safety check before specification.

Saint-Gobain Glass Glass reserves the right to change product performance features without notice or obligation.
Contact your Saint-Gobain sales representative to check the availability of each product in your country.
