4.8mm STADIP® PLUS

Download Brochure

4.8mm STADIP® PLUS

4.8mm STADIP® PLUS laminated glass combines the P2A2 safety and security performance of other products in the STADIP® range with a thinner1, lighter1 construction. Suitable for both double-glazed units and triple-glazed units, it is available in coated variants, including PLANITHERM® NEO, to suit a range of specifications.

The reduced weight1 of 4.8mm STADIP® PLUS can make processing, handling, transportation and installation more straightforward when compared with heavier equivalent products1. It can also help to reduce loads on window systems, hinges and locking mechanisms, and can enable larger insulated glazing unit cavity sizes for improved U-values in specific configurations5.

4.8mm STADIP® PLUS can also help to optimise glazing configurations and deliver higher light transmission than thicker laminated alternatives in some configurations3. In a typical 4/16/4.8 double-glazed unit configuration, it achieves a 2–3 dB acoustic improvement when compared with 4/16/4 monolithic glass4.

Made using PLANICLEAR®, lower-carbon clear float glass as standard, 4.8mm STADIP® PLUS benefits from a substrate whose third-party verified EPD6, published in June 2026, shows a carbon reduction of more than 34% compared with the previous PLANICLEAR® EPD. PLANICLEAR® now achieves 7.22 kg CO₂e/m² for 4 mm glass across Global Warming Potential categories A1–A36. This flat glass substrate is manufactured as standard by Saint-Gobain Glass UK & Ireland.

enhanced safety

Safety

daylight comfort

Daylight

uv protection

UV Protection

enhanced security

Security

acoustic

Acoustic

low carbon

Lower-carbon substrate

4.8mm STADIP® PLUS
4.8mm stadip® plus

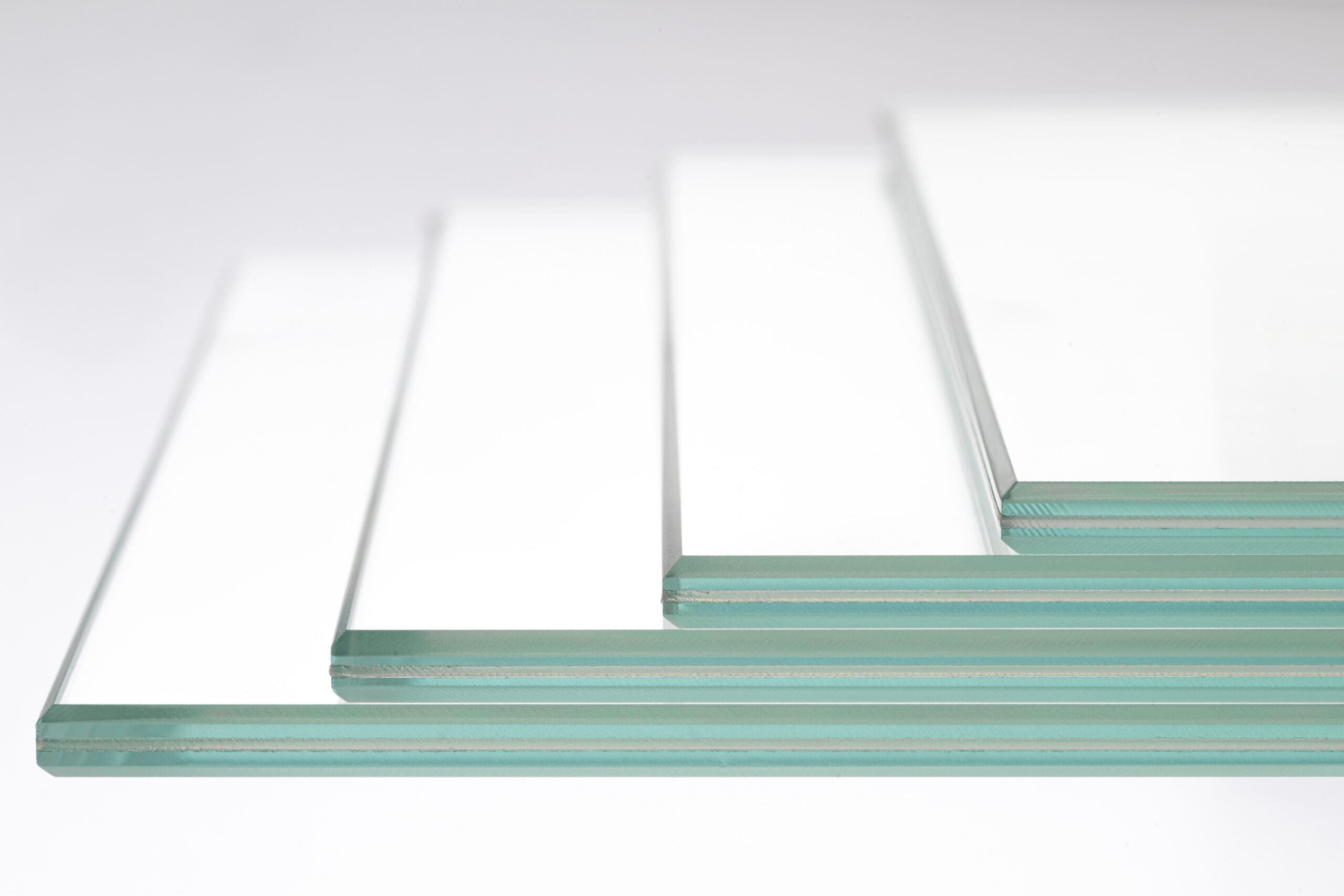

All images are for illustration purposes only

Benefits of 4.8mm STADIP® PLUS

BENEFITS

  • Achieves P2A2 safety and security standard
  • Available in coated variants, including PLANITHERM® NEO, to suit a range of specifications
  • Suitable for both double-glazed units (DGUs) and triple-glazed units (TGUs)
  • Supports the achievement of lower U-values5 in specific configurations

REDUCED WEIGHT1

  • The reduced weight1 can make processing, handling, transportation and installation more straightforward when compared to heavier equivalent products
  • Can help to reduce load on window systems, hinges and locking mechanisms
  • Can enable larger insulated glazing unit (IGU) cavity sizes for improved U-values in specific configurations5

LIGHT TRANSMISSION

  • Delivers higher light transmission than thicker laminated alternatives in some configurations3

ACOUSTIC PERFORMANCE

  • Achieves a 2–3dB acoustic improvement in a typical 4/16/4.8 DGU configuration, when compared with 4/16/4 monolithic glass4. For more information, visit Calumen.com

ENVIRONMENTAL CREDENTIALS

  • Made using PLANICLEAR®, lower-carbon flat glass as standard. PLANICLEAR® is now a lower-carbon, clear float glass, based on the product’s new, third-party verified EPD6 (published June 2026). The new declaration shows a carbon reduction of more than 34% compared with the previous PLANICLEAR® EPD. PLANICLEAR® now achieves 7.22kg CO2e/m2 for 4mm glass (Global Warming Potential categories A1-A3). This flat glass substrate is manufactured as standard by Saint-Gobain Glass UK & Ireland.
  • Manufactured in the UK, which can help support supply chain security and product availability.
  • Using 1 tonne of cullet in the manufacture of new float glass prevents the use of 1.2 tonnes of virgin raw materials and 700kg of CO2 emissions (scopes 1, 2 & 3)7.

Performance of 4.8mm STADIP® PLUS

PERFORMANCE Double Glazed Unit (DGU)
External pane 4.8mm STADIP® PLUS 6.8mm STADIP® 4.8mm STADIP® PLUS 6.8mm STADIP®
Internal pane PLANITHERM® TOTAL+ PLANITHERM® NEO
Composition in mm 4.8 (16) 4 6.8 (14) 4 4.8 (16) 4 6.8 (14) 4
Low-emissivity coating position Face 38 Face 3 Face 3 Face 3
Light transmittance TL** (%) 79 78 73 72
Light reflectance external RLE** (%) 13 13 20 19
Solar factor g-value** (argon 90%) 0.67 0.66 0.51 0.50
U-value* in W/m².K (argon 90%) 1.2 1.2 1.0 1.1

*according to EN673 **according to EN410

PERFORMANCE Triple Glazed Unit (TGU)
External pane 4.8mm STADIP® PLUS 6.8mm STADIP® 4.8mm STADIP® PLUS 6.8mm STADIP®
Internal pane PLANITHERM® TOTAL+ PLANITHERM® NEO
Composition in mm 4.8 (16) 4 (16) 4 6.8 (14) 4 (16) 4 4.8 (16) 4 (16) 4 6.8 (14) 4 (16) 4
Low-emissivity coating position Faces 3 & 5 Faces 3 & 5 Faces 3 & 5 Faces 3 & 5
Light transmittance TL** (%) 69 69 59 59
Light reflectance external RLE** (%) 17 16 27 27
Solar factor g-value** (argon 90%) 0.58 0.57 0.40 0.39
U-value* in W/m².K (argon 90%) 0.6 0.6 0.5 0.6

*according to EN673 **according to EN410

References

  1. Compared to 6.8mm STADIP® laminate glass.
  2. P2A is a recognised classification under EN 356 for security glazing. To achieve this rating, the glass must resist three repeated impacts from a 4.11kg steel sphere dropped from a height of 3 metres.
  3. Comparing 4.8mm STADIP® PLUS (16mm cavity, 90% argon) 4mm PLANITHERM TOTAL+ (face 3) with a light transmittance of 79%, with a 6.8mm STADIP® (14mm cavity, 90% argon) 4mm PLANITHERM TOTAL+ (face 3) with a light transmittance of 78%.
  4. Comparing 4(16mm cavity, 90% argon) 4.8mm STADIP® PLUS with a Calumen simulated Rw of 34 (-1; -5) dB, with 4(16mm cavity, 90% argon)4 with a simulated Rw of 31 (-1; -4) dB.
  5. Refer to performance table for comparable values in different configurations, e.g. 4.8mm STADIP® PLUS/16mm cavity/4mm PLANITHERM® NEO (face 3) with a U-value of 1.0 W/m2.K, when compared with 6.8mm STADIP®/14mm cavity/4mm PLANITHERM® NEO (face 3) with a U-value of 1.1 W/m2.K.
  6. EPD – environdec.com.
  7. The benefit of cullet use is based on a calculation which uses Life Cycle Analysis level data representing all Saint-Gobain Glass European float lines producing architectural glass.
  8. In a standard double-glazed unit (DGU) there are four potential surfaces to which coatings can be applied: surface 1 faces outdoors, surface 2 and surface 3 face each other inside the DGU, separated by a peripheral spacer which creates an insulating air space, and surface 4 faces directly indoors.

The Saint-Gobain recommendation is to always toughen the centre-pane of a triple-glazed unit when using silica glass. Performance data calculated using Calumen.com and is correct at the time of publishing (21.10.2026) but is subject to change at any time.

This website page is regularly updated; information is subject to change. Please check with your local sales and specification team. All trademarks are registered trademarks of Saint-Gobain Glass or affiliates, part of Saint-Gobain group. Images are for illustrative purposes only.
